designer steel
strong and attractive


Create the look you want while maintaining the strength you need.

  • Steel constructed frames, shelving and drawer bodies
  • Door/Drawer fronts made from wood, stainless steel, plastic laminate, phenolic, or corrosion resistant polymers.
  • Typically designed with overlay construction, inset fronts can also be provided


view designer steel project photos

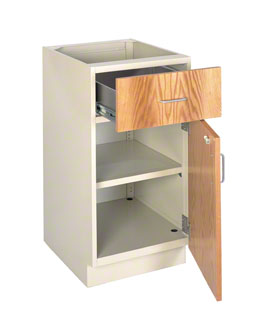

Wakefield Series Designer Overlay Steel Wood Lab CaseworkCabinet Construction

  • All 18-Gauge Case Construction
  • Removable Backs on All Cupboard Units
  • Full Overlay Door & Drawer Fronts
  • Welded Coved Bottoms
  • Optional Galvanized Steel Construction for Greater Corrosion Resistance

Cabinet Base

  • 4” Integral Toe Base
  • Adjustable Leveling Feet

Cabinet Shelves

  • Formed Steel Shelves
  • Adjustable on 1/2” Centers

Cabinet Body Finish Options

  • Chemical Resistant Epoxy Powder Coat Finish
  • Galvanized Powder Coat Painted Steel
  • Over 20 Standard Paint Colors Available
  • Type-304 or Type-316 Stainless Steel

Designer Front Options

  • Wood Veneer
  • Plastic Laminate
  • Phenolic Resin
  • Chemical Resistant Epoxy Powder Coat Finish
  • Glavanized Powder Coat Painted Steel
  • Over 20 Standard Paint Colors Available
  • Type-304 or Type-316 Stainless Steel
  • Polypropylene and Other Polymer Fronts

Drawer Suspension

  • Full Extension Ball Bearing Drawer Slides, 100 lb. Rating
  • Self-Closing Drawer Slides, 100 lb. Rating


Painted Steel Color Options:

Machester & Wakefield Series - Painted Steel Metal Powder Coat Paint Colors - by Mott Manufacturing

  View Interactive Paint Color Chart



Wood Veneer Options:

  View Interactive Wood Veneer Chart



Cabinet Body Options

  • Optional Galvanized Steel Construction for Greater Corrosion Resistance
  • Optional Stainless Steel Construction in type 304 or 316 Stainless



Drawer Body & Slide Options:


3/4 Extension Painted
Drawer Body

Full Extension Painted
Drawer Body

Full Extension Stainless
Drawer Body



Door & Drawer Pulls*:





Option 61
4" Stainless Steel Pull





Option 68
4" Aluminum Wire Pull



Option 61-B
4" Painted Black Wire Pull





Option 63
4" Chrome Bar Pull





Option 62
4" Brushed Aluminum Pull



Option 60
4" Black Nylon Bar Pull




    Many Other Pull Options Also Available



Door Hinge Options:


Option 24 - Stainless Steel Overlay Hinge

Option 20

Chrome Overlay Hinge

for Wood or Other Panel Fronts Shown

Option 24

Stainless Steel Overlay Hinge

for Stainless or Painted Steel Fronts Shown

Option 2A

Black Overlay Hinge

for Wood or Other Panel Fronts Shown



Product Brochures

Title Size Download MyPortfolio
NEL - Designer Steel Lab Casework Brochure 1.20 mb download [+]

Product Specifications

Title Size Download MyPortfolio
Wakefield Series Wood Front Casework Specifications 56 kb download [+]
Painted Steel Powder Coat Appendix 1 15 kb download [+]

Product Manuals

Title Size Download MyPortfolio
Steel Cabinetry Product Manual 235 kb download [+]

Corporate Literature

Title Size Download MyPortfolio
Lab Casework Selector Guide 550 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Casework Lock Options Page A7, H8 488 kb download [+]
Mott Steel Base Cabinet Catalog Section B 2.49 mb download [+]
Mott Steel Cabinet Hinge and Pull Options Page A6 327 kb download [+]
Mott Steel Cylinder Storage Racks Page G14 300 kb download [+]
Mott Steel Flex Series Wall Shelving System Pages G17-G18, G22 518 kb download [+]
Mott Steel Floor Cabinet Catalog Section D 847 kb download [+]
Mott Steel Miscellaneous Catalog Section G 2.91 mb download [+]
Mott Steel Reagent Island Shelving System Pages G15-G16 405 kb download [+]
Mott Steel Service Drops Pages G12-G13 445 kb download [+]
Mott Steel Sigma Frame Shelving System Page G19-G20 400 kb download [+]
Mott Steel Specialty Cabinet Catalog Section E 2.05 mb download [+]
Mott Steel Specialty Cabinet Details Page E17 280 kb download [+]
Mott Steel Specs Options Catalog Section A 860 kb download [+]
Mott Steel Suspended Cabinets Catalog Section F 902 kb download [+]
Mott Steel Wall Cabinet Catalog Section C 1.48 mb download [+]
Mott Strut Frame System Page G23-G28 800 kb download [+]
Mott T5 Fluorescent Task Light Page G20 311 kb download [+]

New England Lab's "Wakefild Series" Designer Steel casework has been designed and constructed with materials that are laboratory grade and are highly recyclable.

Steel

Painted steel consists of 85% or greater recycled content:

  • 42% post consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • 27% pre-consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • Systems solutions that maximize mobility and adaptability creating a user friendly, long life-cycle laboratory.
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.


Wood

  • Choice of several rapidly renewable materials including Bamboo and Agriboard which contributes to LEED credit MR6.
  • Offer no added urea formaldehyde (NAUF) panel products which contributes towards EQ4.4 and are California Air Resources Board (CARB) compliant.
  • Offer Powder Coated steel and stainless steel drawer bodies and shelves which contributes to LEED credit MR4.
  • Re-Constituted Veneers are available to maximize the recycled construction of materials.



Plastic laminate, phenolic or polypropylene fronts are also available with recycled content.

overlay steel - standing height base cabinets thumbnail

overlay steel - standing height base cabinets

Wakefield Series designer steel / wood overlay standing-height base cabinets provide the durability of steel blended with the warmth of wood fronts for your lab.

overlay steel - sitting height base cabinets thumbnail

overlay steel - sitting height base cabinets

Wakefield Series designer steel / wood overlay sitting-height base cabinets provide the durability of a steel blended with the warmth of wood veneer fronts for your lab.

overlay steel - ADA height base cabinets thumbnail

overlay steel - ADA height base cabinets

Wakefield Series designer steel / wood overlay in ADA specified height to meet the accessibility needs of your lab.

overlay steel - wall cabinets thumbnail

overlay steel - wall cabinets

Each cabinet is fabricated from prime quality furniture grade cold rolled or 304-4 stainless steel. All components are die formed, notched, keyed and tightly fitted to form a mechanically constructed electro spot welded rigid unit.

overlay steel - tall floor cabinets thumbnail

overlay steel - tall floor cabinets

Each cabinet is fabricated from prime quality furniture grade cold rolled or 304-4 stainless steel. All components are die formed, notched, keyed and tightly fitted to form a mechanically constructed electro spot welded rigid unit.

overlay steel - mobile cabinets thumbnail

overlay steel - mobile cabinets

Wakefield Series designer steel/ wood overlay mobile cabinets in a variety of door and drawer configurations provide storage on wheels for the ultimate in lab furniture adaptability.

overlay steel - suspended cabinets thumbnail

overlay steel - suspended cabinets

Each cabinet is fabricated from prime quality furniture grade cold rolled or 304-4 stainless steel. All components are die formed, notched, keyed and tightly fitted to form a mechanically constructed electro spot welded rigid unit.

overlay steel - sink base cabinets thumbnail

overlay steel - sink base cabinets

Each cabinet is fabricated from prime quality furniture grade cold rolled or 304-4 stainless steel. All components are die formed, notched, keyed and tightly fitted to form a mechanically constructed electro spot welded rigid unit.

overlay steel - specialty cabinets thumbnail

overlay steel - specialty cabinets

Each cabinet is fabricated from prime quality furniture grade cold rolled or 304-4 stainless steel. All components are die formed, notched, keyed and tightly fitted to form a mechanically constructed electro spot welded rigid unit.

overlay steel - knee spaces, aprons & legs thumbnail

overlay steel - knee spaces, aprons & legs

The Wakefield Series designer overlay steel knee spaces, aprons and leg supports provide the extra details for the industry standard casework for your lab.

overlay steel - fillers, scribes & accessories thumbnail

overlay steel - fillers, scribes & accessories

The Wakefield Series designer overlay steel fillers, scribes and accessories provide the extra details for the industry standard casework for your lab.
