movable workstations
cantilevered flexibility


The Mobile Flex Cart is ideal when benches are moved very often, and are popular for supporting lab equipment.

  • Durable casters make this bench highly mobile
  • Optional lower shelf aids in equipment setup for the storage of waste containers or computer equipment
  • Cantilevered work surfaces are adjustable in 1” increments
  • Supports 900 lbs. maximum load
  • Flex carts could be configured entirely of shelving

The Mobile Flex Cart is compatible with Flex Panel and Flex Core Systems



Flex Cart with Cantilevered Worksurface

  • Worksurface supports 600 lbs evenly distributed
  • Shelving supports 300lbs evenly distributed
  • 900lbs maximum load
  • Cantilevered worksurface
  • Hanging rails for cabinetry
  • Shelving options
  • Adjustable in 1" increments
  • Optional worksurface materials

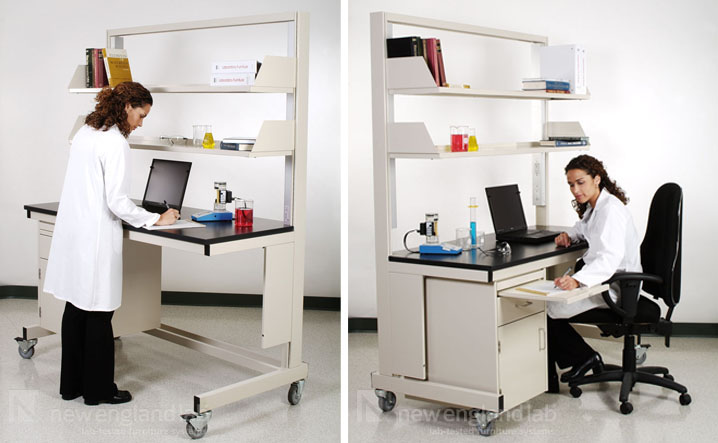

  • Shown standing and sitting height with optional accessories

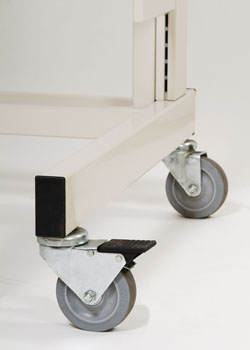

  • 4" nylon casters with swivel and rotation lock.
  • Optional leveling feet with casters
  • Optional leveling feet without casters
  • Optional leveling casters








Our Flex Series Mobile Carts offer options that include:

Painted Steel Color Options:

Machester & Wakefield Series - Painted Steel Metal Powder Coat Paint Colors - by Mott Manufacturing

  View Interactive Paint Color Chart

Work Surface Materials

  • 3/4", 1" and 1-1/2" Epoxy Resin
  • Greenstone Epoxy Eco-Freindly
  • Durastone
  • Solid Tops
  • Phenolic Resin
  • Plastic Laminate
  • Wood Butcher-Block



Height Adjustability

  • Cantelevered worksurfaces adjustable in 1" increments
  • Removable worksurface and support



Mobility Options

  • Adjustable Leveling Feet
  • 4" Heavy-Duty Polymer Locking Casters


Overhead Storage Kits

  • 12-18" Deep Shelf Support Bookend Brackets
  • 12-18" Deep Shelves - in Steel, Wood, Plastic Laminate, Epoxy or Phenolic Resin
  • Task Lighting
  • Articulating Monitor Arms

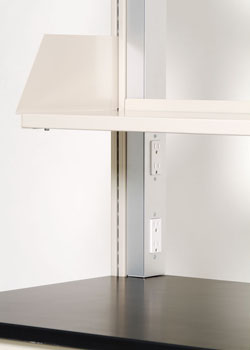

  • Electrical Strip Assembly
  • Keyboard / Mouse Trays

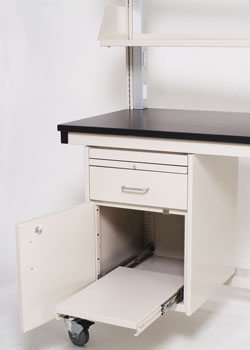

Suspended Cabinets

  • Door Units
  • Drawer Units
  • Combination Door / Drawers
  • File Cabinets
  • CPU Holders

Product Specifications

Title Size Download MyPortfolio
Flex Core - Flex Panel - Flex Cart - Specifications 31 kb download [+]
Painted Steel Powder Coat Appendix 1 15 kb download [+]

Corporate Literature

Title Size Download MyPortfolio
Lab Furniture System Selector Guide 680 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Mobility Catalog Section S 1.93 mb download [+]
Mott Mobility Flex Carts Catalog Pages S2-S8 838 kb download [+]
Mott Steel Suspended Cabinets Catalog Section F 902 kb download [+]
NEL Table Systems Catalog Pages 1.65 mb download [+]

New England Lab's cantilevered flex carts can be designed and manufactured with painted or stainless steel and has been designed and constructed with materials that are laboratory grade and are highly recyclable.



Steel

Painted steel consists of 85% or greater recycled content:

  • 42% post consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • 27% pre-consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • Systems solutions that maximize mobility and adaptability creating a user friendly, long life-cycle laboratory.
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.


Stainless steel consists of 90% recycled content:

  • 80% post consumer which can contribute to LEED credit MR4
  • 20% pre-consumer which can contribute to LEED credit MR4
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.
flex carts - single cart thumbnail

flex carts - single cart

Flex Carts are ideal solutions to work stations that require high levels of durability, mobility, adjustability, and adaptability all with a contemporary design.

flex carts - double cart thumbnail

flex carts - double cart

Double Flex Carts allow for independently adjustable shelving and countertops on one mobile unit.

flex countertop supports thumbnail

flex countertop supports

Cantilevered counter supports fit on Flex Core, Flex Panel and Flex Carts. Counter supports are height adjustable and support suspended cabinets.

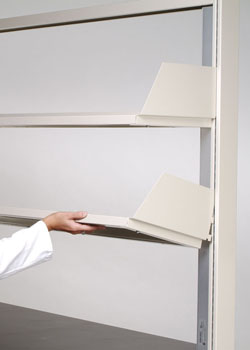

flex shelving thumbnail

flex shelving

Shelves are adjustable in height and available in various depths for above and below worksurface shelving. Carts can be entirely equipped with shelving. Shelves are interchangeable with Flex Core and Flex Panel units.

flex accessories thumbnail

flex accessories

Flex Cart accessories
