panel core system
secured flexibility



The Flex Panel Series utilizes a fixed center panel structure which when supported properly accommodates removable work surfaces, shelves, and is often used to divide space in a laboratory.

  • Panels must be supported to the ceiling or with fixed furniture elements
  • Removable and height adjustable work surfaces
  • Optional mobile, glide, suspended and/or overhead cabinets
  • Limited space for service fixtures
  • Use to create laboratory cubicles or write-up stations




panel based lab furniture system

Upper Storage Space
Adjustable height shelving with bookends are available in a variety of depths. Upper cabinets can be suspended from the uprights in place of open shelves.

Vertical Uprights
The foundation of the Flex Series is a formed and mechanically fastened single slotted upright. The slots are recessed to conceal shelving hooks and holes. Adjustments can be made in 1" increments

Versatility
The Flex Series can be configured as an island or wall bench. Available in 24", 30", 36", 48", 60" and 72" sections.Adjustable on 1/2” Centers

Bookends
Available in angled (standard) or radius design (shown).

Work Surfaces
Available in a wide variety of materials and colors. Work surfaces are adjustable in height without the use of tools. They can be easily adjusted to comply with (ADA) Americans with Disabilities Act.

Lower Storage Space
Fixed or suspended casework is optional. Suspended casework and shelving can be added below the work surface without tools.

Access Panels
Service covers snap on and off without tools for easy access to plumbing and electricalconnections.

Core System
Cores are available in upper, lower and full height configurations (full height shown).

Cantilever Design
Cantilever work surface support frame provides unobstructed access
to floor.

Service Fixtures
The core system is specifically designed to accommodate plumbing, electrical and communication services.

Product Specifications

Title Size Download MyPortfolio
Flex Core - Flex Panel - Flex Cart - Specifications 31 kb download [+]
Painted Steel Powder Coat Appendix 1 15 kb download [+]

Corporate Literature

Title Size Download MyPortfolio
Lab Furniture System Selector Guide 680 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Complete Steel Catalog - Sections A-G, O 10.76 mb download [+]
Mott Flex Core and Panel Catalog Section U 4.15 mb download [+]
Mott Steel Suspended Cabinets Catalog Section F 902 kb download [+]
Mott Wood Suspended Cabinet Catalog Section M 812 kb download [+]

New England Lab's panel based casework can be designed and manufactured with a variety of  laboratory grade highly recyclable material:

Steel

Painted steel consists of 85% or greater recycled content:

  • 42% post consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • 27% pre-consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • Systems solutions that maximize mobility and adaptability creating a user friendly, long life-cycle laboratory.
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.


Stainless steel consists of 90% recycled content:

  • 80% post consumer which can contribute to LEED credit MR4
  • 20% pre-consumer which can contribute to LEED credit MR4
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.


Wood

  • FSC® (FSC-105535) Certified wood products can be provided upon request which may contribute to LEED credit MR7.
  • Choice of several rapidly renewable materials including Bamboo and Agriboard which contributes to LEED credit MR6.
  • Offer no added urea formaldehyde (NAUF) panel products which contributes towards EQ4.4 and are California Air Resources Board (CARB) compliant.
  • Offer Powder Coated steel and stainless steel drawer bodies and shelves which contributes to LEED credit MR4.
  • Re-Constituted Veneers are available to maximize the recycled construction of materials.


Plastic laminate, phenolic or polypropylene casework is also available with varying levels of recycled content.

flex panel - island panel thumbnail

flex panel - island panel

The island panel separates lab space and allows overhead cabinets or shelving and cantilevered counter supports on both sides.

flex panel - wall panel thumbnail

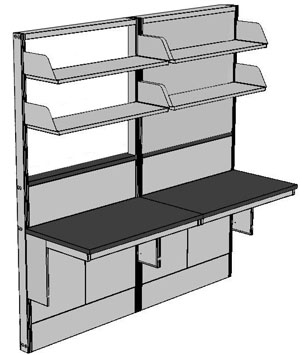

flex panel - wall panel

The wall panel anchors to the wall and allows overhead cabinets or shelving and cantilevered counter supports.

flex countertop supports thumbnail

flex countertop supports

Cantilevered counter supports fit on Flex Core, Flex Panel and Flex Carts. Counter supports are height adjustable and support suspended cabinets.

flex shelving thumbnail

flex shelving

Shelves are adjustable in height and available in various depths for island and wall cores. Shelves may be interchangeable with Flex Core units and Flex Carts.

flex accessories thumbnail

flex accessories

Flex Panel Accessories accessories to complete your lab.
