standard
versatile, reliable

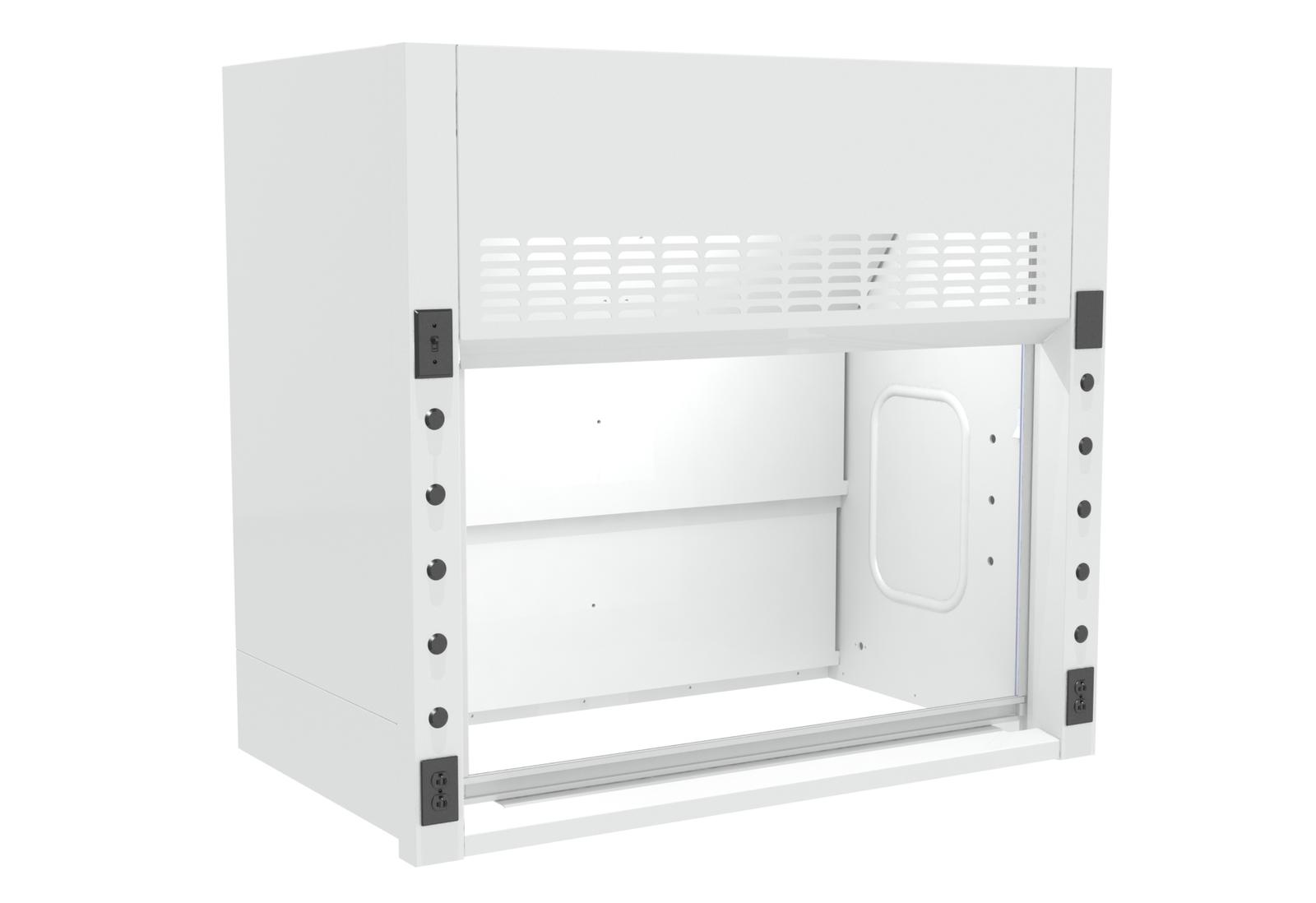

The Pro Series fume hood has been engineered for both performance and economical savings, making it our most requested fume hood model.

  • Stainless steel airfoils
  • Durable chain and sprocket sash system
  • Available in a variety of configurations
  • Special applications include distillation, perchloric acid and radioisotope
  • CAV or VAV



New Call-to-action



Rapid Ship available!
In-stock fume hoods ship in 5-7 business days.

RFV2 Series Fume Hoods - New England Lab in Partnership with Mott Manufacturing

Face Velocities

Designed for 80-100 fpm face velocity.  Tested to ASHRAE-110 Guidelines.

Sash Counterbalance System

Chain and sprocket sash delivers the smoothest and most reliable operation available and has an exceptionally long life span.

Optional Automatic Sash Closing System

Optional electronic occupancy sensor system closes the sash automatically when not in use, or within a timed interval when operator moves away from the fume hood.

Viewing Sash

Provides a clear and unobstructed side to side view of fume hood interior, with a 28-1/2” high sash opening.

Lower Airfoil

The stainless steel lower airfoil ensures optimum airflow and delivers unequaled durability and style.

Chemical Resistant Liner

Standard fiberglass reinforced polyester liner has excellent strength and chemical resistance; additional liner materials are also available.

Access Panels

Interior gasketed access panels provide convenient access and prevent fume leakage outside the fume hood. Exterior side panels are also removable for ease of access to plumbing and electrical service fixtures.

Duct Collar

Bell shaped Type 316 stainless steel collar connects easily and directly with the building ventilation system.

Electrical Services

Two UL / CSA approved duplex receptacles are provided for 120 volt service. UL / CSA approved fluorescent light fixture mounted outside the fume chamberprovides increased safety, longer life and easy maintenance. This fume hood is UL 1805 Classified.

Plumbing Services

Front post is pre-punched to accept up to five plumbing fixtures per side. Factory pre-plumbing of front-loaded remote fixtures is an available option.

Fume Hood Types

Our fume hoods come in a variety of types designed for specific applications and can be made to match your specific size requirements in height and depth. These types include: bench fume hood, floor mounted fume hood, ADA fume hood, distillation fume hood, teaching fume hood and double sided fume hood.

* Pro Series fume hood is trademarked and produced by Mott Manufacturing.

Mott Manufacturing - Exclusive RFV2 Fume Hood Partner




Optional Self-Lowering Sash System

Sash latch temporarily secures the sash in the full open position for setup and tear down operations. When the latch is freed, the sash automatically returns to the operational position for energy conservation and safety.

Optional Automatic Sash Closing System

Electronic occupancy sensor system closes the sash automatically when not in use, or within a timed interval when operator moves away from the fume hood.

Some other commonly requested Pro Series options include:

  • Viewing Panels for increased visibility
  • Sash Operation Options (Vertical, Horizontal, Combination, Split-Post, etc)
  • A Flush sill

Product Brochures

Title Size Download MyPortfolio
Mott - Demonstration Fume Hood Brochure 1.65 mb download [+]
NEL - Pro Series Fume Hood Brochure 1.17 mb download [+]
NEL Direct - Rapid Ship Catalog 2.39 mb download [+]

Product Specifications

Title Size Download MyPortfolio
Pro Series Fume Hood Specifications 77 kb download [+]
Painted Steel Powder Coat Appendix 1 15 kb download [+]

Product Manuals

Title Size Download MyPortfolio
Fume Hood User and Installation Product Manual 461 kb download [+]

Corporate Literature

Title Size Download MyPortfolio
Lab Fume Hood Selector Guide 745 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Fume Hood Catalog Section P 7.02 mb download [+]
Mott Fume Hood Introduction Catalog Pages P1-P3 399 kb download [+]
Mott Pro Series Fume Hoood Catalog Pages P4-P13, P24-P25, P34-P35 & P40-P57 3.20 mb download [+]
Rapid Ship Catalog - Fume Hoods & Accessories 245 kb download [+]




The Pro Series fume hoods can be designed and manufactured with painted or stainless steel and has been designed and constructed with materials that are laboratory grade and are highly recyclable.

Our low volume fume hood option can result in considerable energy savings by reducing the sash opening size.

An Automatic Sash Operating System can be incorporated that lowers and/or rises automatically which can enhance safety and dramatically increase the efficiency of Variable Air Volume (VAV) fume hood systems.


Steel

Painted steel consists of 85% or greater recycled content:

  • 42% post consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • 27% pre-consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • Systems solutions that maximize mobility and adaptability creating a user friendly, long life-cycle laboratory.
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.


Stainless steel consists of 90% recycled content:

  • 80% post consumer which can contribute to LEED credit MR4
  • 20% pre-consumer which can contribute to LEED credit MR4
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.
pro series - bench mounted fume hood thumbnail

pro series - bench mounted fume hood

Bench mounted fume hoods allow work to be done at standing or sitting heights and sit conveniently on a 30" deep countertop. With a range of sash styles and liner materials, this hood can provide safety and protection for a wide variety of benchtop applications.

pro series - floor-mounted fume hood thumbnail

pro series - floor-mounted fume hood

This fume hood (formerly called a walk-in) is freestanding and is available with many sash configurations. These hoods can allow for larger items to be wheeled in at floor level or can provide protection by containing large floor-mounted equipment.

pro series - distillation hood thumbnail

pro series - distillation hood

This extra tall hood can be set on a low height table to maximize vertical space. This hood is especially helpful when you need the height of a floor mounted hood but also need the convenience of a traditional hood worksurface such as a distillation set up.

pro series - accessible hood thumbnail

pro series - accessible hood

This fume hood is designed to meet ADA requirements for accessibility. With the proper base cabinet configuration the hood services can be within accessibility guidelines. The combination sash also allows for ease of use from a seated position.

pro series - demonstration bench hood thumbnail

pro series - demonstration bench hood

Designed for instructor demonstrations this hood has a sash on both sides to permit full viewing by the instructor and observers. This hood can be utilized free-standing or is commonly installed in the wall between a classroom and a prep room.

pro series - perchloric acid hood thumbnail

pro series - perchloric acid hood

The perchloric acid hood is designed with a seamlessly welded and coved stainless steel liner with integral countertop. The hood has an internal wash-down system to prevent accumulation of dangerous oxidizers.

pro series - radio isotope hood thumbnail

pro series - radio isotope hood

Designed to meet the stringent requirements of radioisotope applications, this hood is designed with a seamlessly welded and coved stainless steel liner with integral counter top. The countertop has been reinforced to support the weight of lead bricks.
