Face Velocities

Designed for 80-100 fpm face velocity.  Tested to ASHRAE-110 Guidelines.

Sash Counterbalance System

Chain and sprocket sash delivers the smoothest and most reliable operation available and has an exceptionally long life span.

Optional Automatic Sash Closing System

Optional electronic occupancy sensor system closes the sash automatically when not in use, or within a timed interval when operator moves away from the hood.

Viewing Sash

Provides a clear and unobstructed side to side view of fume hood interior, with a 28-1/2” high sash opening.

Lower Airfoil

The stainless steel lower airfoil ensures optimum airflow and delivers unequaled durability and style.

Chemical Resistant Liner

Standard fiberglass reinforced polyester liner has excellent strength and chemical resistance; additional liner materials are also available.

Access Panels

Interior gasketed access panels provide convenient access and prevent fume leakage outside the fume hood. Exterior side panels are also removable for ease of access to plumbing and electrical service fixtures.

Duct Collar

Bell shaped Type 316 stainless steel collar connects easily and directly with the building ventilation system.

Electrical Services

Two UL / CSA approved duplex receptacles are provided for 120 volt service. UL / CSA approved fluorescent light fixture mounted outside the fume chamberprovides increased safety, longer life and easy maintenance. This fume hood is UL 1805 Classified.

Plumbing Services

Front post is pre-punched to accept up to five plumbing fixtures per side. Factory pre-plumbing of front-loaded remote fixtures is an available option.

Hood Types

Our hoods come in a variety of types designed for specific applications and can be made to match your specific size requirements in height and depth. These types include: bench, floor mounted, ADA, distillation, teaching and double sided.

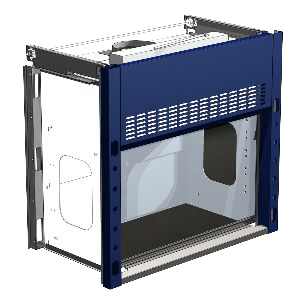

* Pro Series fume hood is trademarked and produced by Mott Manufacturing.

Some Pro Series fume hoods have an optional sash interlock, allowing only one sash to be open at a time. A sash key lock and end window are also available on some models. Please see our Pro Series fume hoods specifications and documentation for more information about:

• Self-Closing Sash Options
• Viewing Panels
• Sash Operation Options (Vertical, Horizontal, Combination, Split-Post, etc)

The Pro Series fume hoods can be designed and manufactured with painted or stainless steel and has been designed and constructed with materials that are laboratory grade and are highly recyclable.

Our low volume option can result in considerable energy savings by reducing the sash opening size.

An Automatic Sash Operating System can be incorporated that lowers and/or rises automatically which can enhance safety and dramatically increase the efficiency of Variable Air Volume (VAV) systems.

Painted steel consists of 32.7% recycled content and stainless steel consists of 60% recycled content:

Steel

• 25.5% post consumer
• 6.8% pre-consumer
• Durable, high-quality surface protection with minimal waste and Zero VOC's.
• Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.

Stainless Steel

• 25% post consumer
• 35% pre-consumer
• Durable, high-quality surface protection with minimal waste and Zero VOC's.
• Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.
