enhanced efficiency
stylish containment

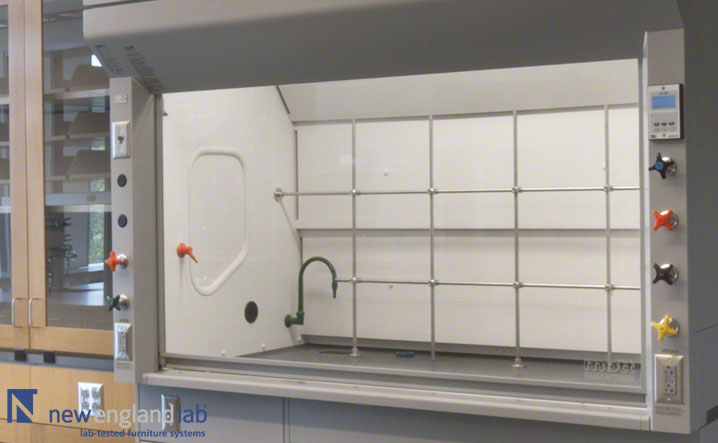

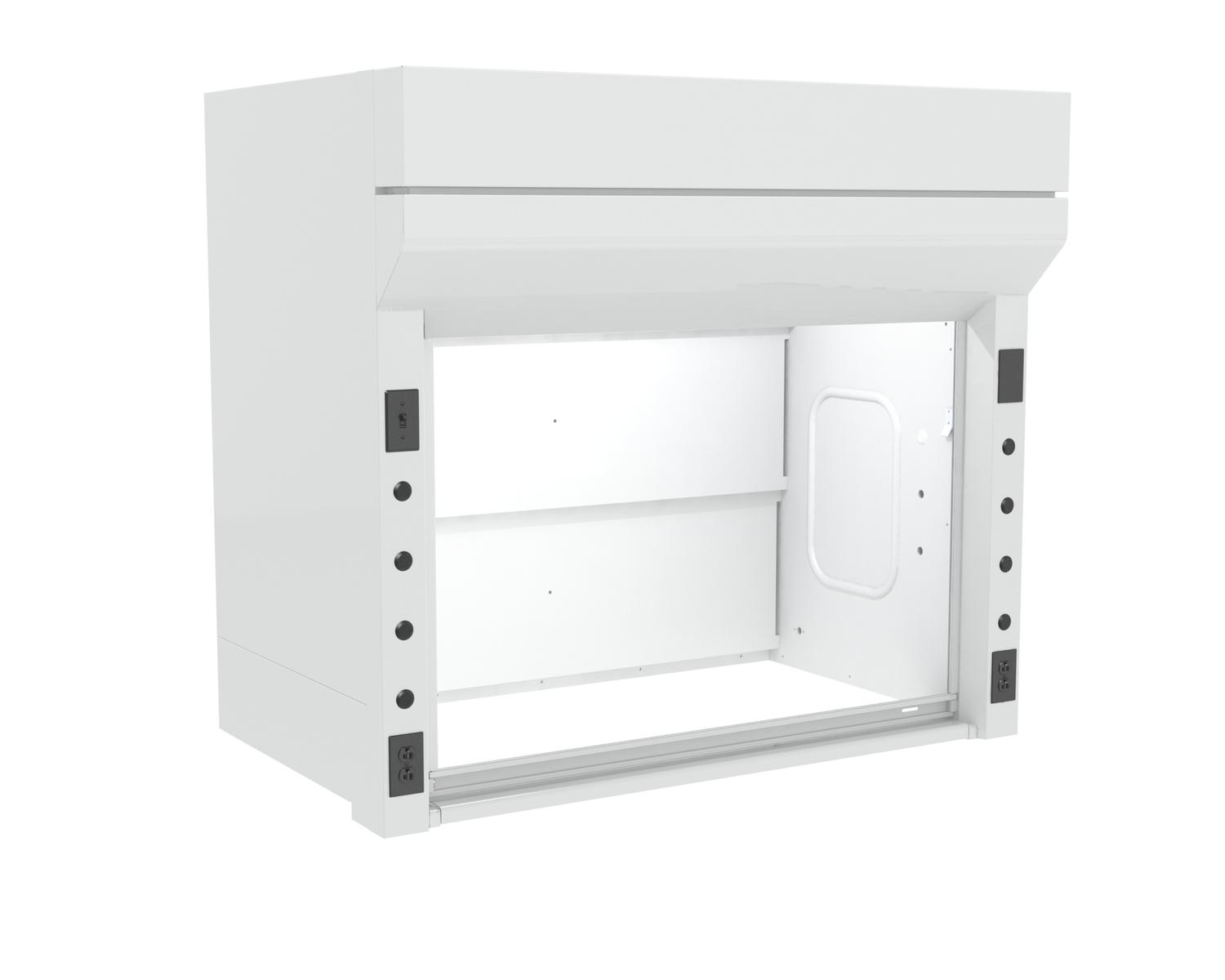

The Safeguard Series fume hood is developed for aesthetics, ergonomics, and energy efficiency.

  • Flush sill with spill containment trough
  • Durable chain and sprocket sash system
  • Self-lowering sash that keeps the sash at 18” if raised above the set point
  • Modern appearance
  • 34” viewing height for increased interior visibility



New Call-to-action

Safeguard Series Fume Hoods - New England Lab in Partnership with Mott Manufacturing

Face Velocities

Designed for 60-100 fpm face velocity.  Tested to ASHRAE-110 Guidelines.

Sash Counterbalance System

Chain and sprocket sash delivers the smoothest and most reliable operation available and has an exceptionally long life span.

Self-lowering sash system

Sash latch temporarily secures the sash in the full open position for setup and tear down operations. When the latch is freed, the sash automatically returns to the operational position for energy conservation and safety.

Full Viewing Sash

Provides a clear and unobstructed side to side view of fume hood interior, with a 34” high viewing area.

Low Profile Hinged Airfoil

Flush with the work surface to provide easy access to the fume hood interior. Spill trough is designed to provide secondary containment in the event a spill escapes the primary containment worktop. Air foil is hinged for easy cleaning.

Chemical Resistant Liner

Standard fiberglass reinforced polyester liner has excellent strength and chemical resistance; additional liner materials are also available.

Access Panels

Interior gasketed access panels provide convenient access and prevent fume leakage outside the fume hood. Exterior side panels are also removable for ease of access to plumbing and electrical service fixtures.

Electrical Services

Two UL / CSA approved duplex receptacles are provided for 120 volt service. UL / CSA approved fluorescent light fixture mounted outside the fume chamber provides increased safety, longer life and easy maintenance. This fume hood is UL 1805 Classified.

Duct Collar

Bell shaped type 316 stainless steel collar connects easily and directly with the building ventilation system.

Plumbing Services

Front post is pre-punched to accept four plumbing fixtures per side. Factory pre-plumbing of front-loaded remote or rod-driven fixtures is an available option.

* Safeguard Series fume hood is trademarked and produced by Mott Manufacturing.

Mott Manufacturing - Exclusive RFV2 Fume Hood Partner




Optional Automatic Sash Closing System

Electronic occupancy sensor system closes the sash automatically when not in use, or within a timed interval when operator moves away from the fume hood.



Please see our Safeguard Series fume hood specifications and documentation for more information about:

  • Self-Closing Sash Options
  • Viewing Panels
  • Sash Operation Options (Vertical, Horizontal, Combination, Split-Post, etc)

Product Brochures

Title Size Download MyPortfolio
Mott - Safeguard Fume Hood Brochure 858 kb download [+]
NEL - Safeguard Series Fume Hood Brochure 1.07 mb download [+]

Product Specifications

Title Size Download MyPortfolio
Safeguard Fume Hood Specifications 38 kb download [+]
Painted Steel Powder Coat Appendix 1 15 kb download [+]

Product Manuals

Title Size Download MyPortfolio
Fume Hood User and Installation Product Manual 461 kb download [+]

Corporate Literature

Title Size Download MyPortfolio
Lab Fume Hood Selector Guide 745 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Fume Hood Catalog Section P 7.02 mb download [+]
Mott Fume Hood Introduction Catalog Pages P1-P3 399 kb download [+]
Mott Safeguard Fume Hood Catalog Pages P17-P20 520 kb download [+]




The Safeguard Series fume hoods can be designed and manufactured with painted or stainless steel and has been designed and constructed with materials that are laboratory grade and are highly recyclable.

Our low flow fume hoods can result in considerable energy cost reduction and ensure operator safety.  Designed to operate from 60-100 feet per minute face velocities.  They have been tested as low as 50 feet per minute.

Our low volume option can result in considerable energy savings by reducing the sash opening size.

An Automatic Sash Operating System can be incorporated that lowers and/or rises automatically which can enhance safety and dramatically increase the efficiency of Variable Air Volume (VAV) fume hood systems.



Steel

Painted steel consists of 85% or greater recycled content:

  • 42% post consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • 27% pre-consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • Systems solutions that maximize mobility and adaptability creating a user friendly, long life-cycle laboratory.
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.


Stainless steel consists of 90% recycled content:

  • 80% post consumer which can contribute to LEED credit MR4
  • 20% pre-consumer which can contribute to LEED credit MR4
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.
safeguard - bench mounted hood thumbnail

safeguard - bench mounted hood

Bench mounted fume hoods allow work to be done at standing or sitting heights and sit conveniently on a 30" deep countertop. With a range of sash styles and liner materials, this hood can provide safety and protection for a wide variety of benchtop applications.

safeguard - accessible hood thumbnail

safeguard - accessible hood

This fume hood is designed to meet ADA requirements for accessibility. With the proper base cabinet configuration the hood services can be within accessibility guidelines. The combination sash also allows for ease of use from a seated position.

safeguard - radio isotope hood thumbnail

safeguard - radio isotope hood

Designed to meet the stringent requirements of radioisotope applications, this hood is designed with a seamlessly welded and coved stainless steel liner with integral counter top. The countertop has been reinforced to support the weight of lead bricks.
