stainless steel
rugged, sterile


Stainless steel cabinets are ideally suited for environments that require a high degree of cleanliness, durability, or are subjected to high moisture and extreme temperatures.

  • Manufactured to the same specifications as our painted steel cabinets
  • Available in type 304 or type 316 stainless steel
  • Easy to clean
  • Corrosion resistant
  • Perfect for critical environments


view stainless steel project photos

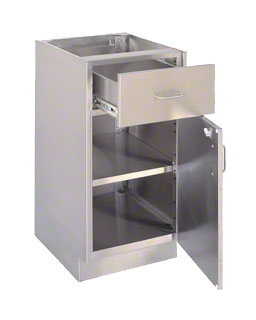

Stratford Series Stainless Steel Base Cabinet - Lab CaseworkCabinet Construction

  • All 18-Gauge Case Construction
  • Removable Backs on All Cupboard Units
  • Door and Drawer Fronts with Double-Wall Construction Encasing - Sound Blocking Material
  • Welded, Coved Bottoms
  • Interchangable Door and Drawer Configuration

Cabinet Base

  • 4” Integral Toe Base
  • Adjustable Leveling Feet

Cabinet Shelves

  • Formed Stainless Steel Shelves
  • Adjustable on 1/2” Center

Finish Options

  • Type 304 Stainless Steel with No. 4 Satin Finish
  • Type 316 Stainless Steel with No. 4 Satin Finish

Drawer Construction

  • One-Piece Coved Drawer Body Construction
  • Type 304 or 316 Stainless Steel

Door Hardware

  • Stainless Steel 5-Knuckle Hinge
  • For additional hinges see "options" tab
  • Nylon Roller Catch

Door / Drawer Pulls

  • Stainless Steel Wire Pull
  • For additional pulls see "options" tab

Drawer Suspension

  • Full Extension Ball Bearing Drawer Slides, 100 lb. Rating
  • Self-Closing Drawer Slides, 100 lb. Rating


Finish Options

  • Type 304 Stainless Steel with No. 4 Satin Finish
  • Type 316 Stainless Steel with No. 4 Satin Finish

Drawer Construction

  • One-Piece Coved Drawer Body Construction
  • Type 304 or 316 Stainless Steel



Drawer Body & Slide Options:



3/4 Extension Stainless
Drawer Body



Full Extension Stainless
Drawer Body



Door & Drawer Pulls:



Option 61 - Stainless Steel Wire Pull   Option 62 - Brushed Aluminum D Pull Option 63 - Chrome Bar Pull

Option 61
4" Stainless Steel Pull





Option 62
4" Brushed Aluminum Pull



Option 63
4" Chrome Bar Pull



Painted Steel - Black Wire Pull   Option 68 - Brushed Aluminum Wire Pull Option 60 - Black Nylon Bar Pull

Option 61-B
4" Painted Black Wire Pull





Option 68
4" Aluminum Wire Pull



Option 60
4" Black Nylon Bar Pull



Option 64 - ABS Black Flush Pull   Option 65 - Aluminum Flush Pull Option 66 - PVC Flush Pull

Option 64
Black ABS Flush Pull





Option 65
Aluminum Flush Pull



Option 66
PVC Flush Pull





Door Hinge Options:



Option 22 - Chrome Hinge Option 22 - Painted Black Hinge Option 23 - Stainless Steel Hinge

Option 21

Chrome Finish

Option 22

Painted Black

Option 23

Stainless Steel



Product Brochures

Title Size Download MyPortfolio
NEL - Stainless Steel Lab Casework Brochure 1.56 mb download [+]

Product Specifications

Title Size Download MyPortfolio
Stratford Series Casework Specifications 56 kb download [+]
Stainless Steel Worksurface Appendix 2 8 kb download [+]

Product Manuals

Title Size Download MyPortfolio
Stainless Steel Care and Cleaning Product Manual 232 kb download [+]
Steel Cabinetry Product Manual 235 kb download [+]

Corporate Literature

Title Size Download MyPortfolio
Lab Casework Selector Guide 550 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Casework Lock Options Page A7, H8 488 kb download [+]
Mott Stainless Steel Casework Catalog Section O 288 kb download [+]
Mott Stainless Steel Tables Page R10 298 kb download [+]
Mott Steel Base Cabinet Catalog Section B 2.49 mb download [+]
Mott Steel Cylinder Storage Racks Page G14 300 kb download [+]
Mott Steel Flex Series Wall Shelving System Pages G17-G18, G22 518 kb download [+]
Mott Steel Floor Cabinet Catalog Section D 847 kb download [+]
Mott Steel Miscellaneous Catalog Section G 2.91 mb download [+]
Mott Steel Reagent Island Shelving System Pages G15-G16 405 kb download [+]
Mott Steel Service Drops Pages G12-G13 445 kb download [+]
Mott Steel Sigma Frame Shelving System Page G19-G20 400 kb download [+]
Mott Steel Specialty Cabinet Catalog Section E 2.05 mb download [+]
Mott Steel Specialty Cabinet Details Page E17 280 kb download [+]
Mott Steel Suspended Cabinets Catalog Section F 902 kb download [+]
Mott Steel Wall Cabinet Catalog Section C 1.48 mb download [+]
Mott Strut Frame System Page G23-G28 800 kb download [+]
Mott T5 Fluorescent Task Light Page G20 311 kb download [+]

New England Lab's "Stratford Series" Stainless Steel casework has been designed and constructed with materials that are laboratory grade and are highly recyclable.

Stainless steel consists of 90% recycled content:

  • 80% post consumer which can contribute to LEED credit MR4
  • 20% pre-consumer which can contribute to LEED credit MR4
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.
stainless steel - standing height base cabinets thumbnail

stainless steel - standing height base cabinets

Stratford Series stainless steel standing-height base cabinets are available in a variety of door and drawer configurations to meet the storage requirements of your new lab.

stainless steel - sitting height base cabinets thumbnail

stainless steel - sitting height base cabinets

Stratford Series stainless steel sitting-height base cabinets can be used for writing stations and other seated applications such as pipetting or microscope viewing.

stainless steel - accessible ht base cabinets (ADA) thumbnail

stainless steel - accessible ht base cabinets (ADA)

Stratford Series stainless steel in ADA specified height to meet the accessibility needs of your lab.

stainless steel - wall cabinets thumbnail

stainless steel - wall cabinets

Stratford Series stainless steel wall cabinets provide overhead storage with open, glass or solid door fronts.

stainless steel - tall standing floor cabinets thumbnail

stainless steel - tall standing floor cabinets

Stratford Series stainless steel tall standing floor cabinets provide maximized storage and specialty lab storage furniture solutions.

stainless steel - mobile cabinets thumbnail

stainless steel - mobile cabinets

Stratford Series stainless steel mobile cabinets in a variety of door and drawer configurations providing cleanable storage on wheels for superior lab furniture adaptability.

stainless steel - suspended cabinets thumbnail

stainless steel - suspended cabinets

Stratford Series stainless steel suspended cabinets provide under-counter hanging storage and filing solutions for your adaptable lab.

stainless steel - sink base cabinets thumbnail

stainless steel - sink base cabinets

Stratford Series stainless steel sink base cabinets can accommodate many lab sink sizes including double bowl configurations.

stainless steel - specialty base cabinets thumbnail

stainless steel - specialty base cabinets

Stratford Series stainless steel cabinets such as flammable/solvent storage, acid and pump cabinets for your specialty storage needs.

stainless steel - knee spaces, aprons & legs thumbnail

stainless steel - knee spaces, aprons & legs

Stratford Series stainless steel knee space panels, aprons and leg supports provide knee openings, areas for waste containers or equipment.

stainless steel - fillers, scribes & accessories thumbnail

stainless steel - fillers, scribes & accessories

Stratford Series stainless steel fillers, scribes and accessories provide the extra details to complete your new lab furniture installation.
