wood veneer
natural, classic warmth


The classic look and warmth of wood has long been popular in educational and research environments.

  • Full overlay construction with chemical resistant finish
  • Natural veneer and engineered veneer choices available
  • Variety of color stains and tints as well as clear finish


view wood veneer project photos

Lexington Series Wood Veneer Cabinets - Lab CaseworkCabinet Body Construction

  • Veneer Core
  • Doweled and Glued ¾” Plywood

Cabinet Front Construction

  • Full Overlay or Reveal Overlay Fronts
  • 3/4” Particle Core of MDF Fronts

Cabinet Base

  • Veneer Core Plywood to Floor
  • Optional Water Resistant Plywood Base

Cabinet Shelves

  • Full Depth with Steel Pin Shelf Supports
  • Adjustable on 32mm Centers

Drawer Construction

  • Dovetailed Multiply Birch Box
  • Blum Metabox System

Drawer Suspension

  • Full Extension Ball Bearing 100 lb. Slides
  • Full Extension Ball Bearing 200 lb. Slides
  • Epoxy Coated Self-Closing 75 lb. Slides
  • Blum Metabox System

Veneer Types

  • Over 20 Standard Veneers Available
  • Custom Veneers
  • Re-Constituted Veneers

Door Hardware

  • Low Profile 3-Knuckle Hinge
  • Concealed Hinge
  • Brushed Chrome 5-Knuckle Hinge
  • Black 5-Knuckle Hinge
  • Stainless Steel 5-Knuckle Hinge
  • Nylon Roller Catch

Grain Pattern

  • Combination Grain
  • Vertically Matched Grain

Core Materials

  • Partical Board Core with Water Resistant Plywood Base
  • MDF with Water Resistant Plywood Base
  • Veneer Plywood to Floor

Lexington Series Door and Drawer Pulls

  • Stainless Steel Wire Pull
  • Aluminum Wire Pull
  • Brushed Chrome “D” Pull
  • Brushed Aluminum “D” Pull
  • Brushed Aluminum Wire Pull
  • Polished Chrome Wire Pull
  • Other Pulls Available




Wood Veneer Options

  View Interactive Wood Veneer Chart



Drawer Body & Slide Options:


Wood Veneer MetaBox Drawer

3/4 Extension MetaBox
Drawer Body



Full Extension Dovetailed
Drawer Body



Door & Drawer Pulls*:



Option 61
4" Stainless Steel Pull



Option 68
4" Aluminum Wire Pull



Option 61-B
4" Painted Black Wire Pull



Option 63
4" Chrome Bar Pull



Option 62
4" Brushed Aluminum Pull



Option 60
4" Black Nylon Bar Pull




  Many Other Pull Options Also Available



Door Hinge Options:


Option 20

Chrome Overlay Hinge

Option 24

Stainless Steel Overlay Hinge

Option 2A

Black Overlay Hinge

Option 3K

Self-Closing 3-Knuckle Hinge

Option 120

Self-Closing Concealed Hinge

Option 170

Self-Closing Concealed Hinge



Product Brochures

Title Size Download MyPortfolio
NEL - Wood Veneer Lab Casework Brochure 1.25 mb download [+]

Product Specifications

Title Size Download MyPortfolio
Lexington Series Casework Specifications 45 kb download [+]

Product Education

Title Size Download MyPortfolio
Wood Veneers and Cuts 171 kb download [+]

Corporate Literature

Title Size Download MyPortfolio
Lab Casework Selector Guide 550 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Casework Lock Options Page A7, H8 488 kb download [+]
Mott Complete Wood Catalog - Sections H-N 8.70 mb download [+]
Mott Wood Base Cabinet Catalog Section I 2.46 mb download [+]
Mott Wood Floor Cabinet Catalog Section K 833 kb download [+]
Mott Wood Miscellaneous Catalog Section N 1.62 mb download [+]
Mott Wood Science Assemblies Pages N10-N14 587 kb download [+]
Mott Wood Specialty Cabinet Catalog Section L 1.37 mb download [+]
Mott Wood Specs Options Catalog Section H 1.08 mb download [+]
Mott Wood Suspended Cabinet Catalog Section M 812 kb download [+]
Mott Wood Wall Cabinet Catalog Section J 1.44 mb download [+]
New England Caseworks Wood or Laminate Catalog 1.52 mb download [+]
New England Lab Wood or Laminate Catalog 1.52 mb download [+]
NEL Wood Science Assemblies Pages 2.43-2.46 447 kb download [+]

New England Lab's "Lexington Series" wood casework has been designed and constructed with materials that are laboratory grade and are highly recyclable.


  • Choice of several rapidly renewable materials including Bamboo and Agriboard which contributes to LEED credit MR6.
  • Offer no added urea formaldehyde (NAUF) panel products which contributes towards EQ4.4 and are California Air Resources Board (CARB) compliant.
  • Offer Powder Coated steel and stainless steel drawer bodies and shelves which contributes to LEED credit MR4.
  • Re-Constituted Veneers are available to maximize the recycled construction of materials.
wood veneer - standing height base cabinets thumbnail

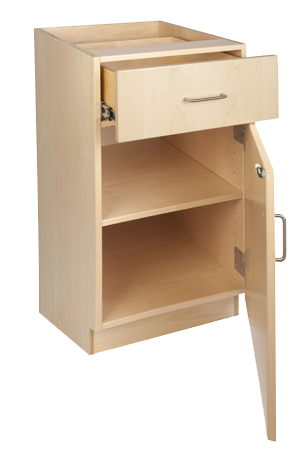

wood veneer - standing height base cabinets

Lexington Series wood veneer standing-height base cabinets are available in a variety of door and drawer configurations to meet the storage requirements of your new lab.

wood veneer - sitting height base cabinets thumbnail

wood veneer - sitting height base cabinets

Lexington Series wood veneer sitting-height base cabinets can be used for writing stations and other seated applications such as pipetting or microscope viewing.

wood veneer - accessible ht base cabinets (ADA) thumbnail

wood veneer - accessible ht base cabinets (ADA)

Lexington Series wood veneer in ADA specified height meet the accessibility needs of your lab.

wood veneer - wall cabinets thumbnail

wood veneer - wall cabinets

Lexington Series wood veneer wall cabinets provide overhead storage with open, glass or solid door fronts.

wood veneer - tall standing  floor cabinets thumbnail

wood veneer - tall standing floor cabinets

Lexington Series wood veneer tall standing floor cabinets provide maximized storage and specialty lab storage furniture solutions.

wood veneer - mobile cabinets thumbnail

wood veneer - mobile cabinets

Lexington Series wood veneer mobile cabinets in a variety of door and drawer configurations provide storage on wheels for the ultimate in lab furniture adaptability and classic aesthetics.

wood veneer - suspended cabinets thumbnail

wood veneer - suspended cabinets

Lexington Series wood veneer suspended cabinets provide under-counter hanging storage and filing solutions for your adaptable lab.

wood veneer - sink base cabinets thumbnail

wood veneer - sink base cabinets

Lexington Series wood veneer sink base cabinets can accommodate many lab sink sizes including double bowl configurations.

wood veneer - specialty base cabinets thumbnail

wood veneer - specialty base cabinets

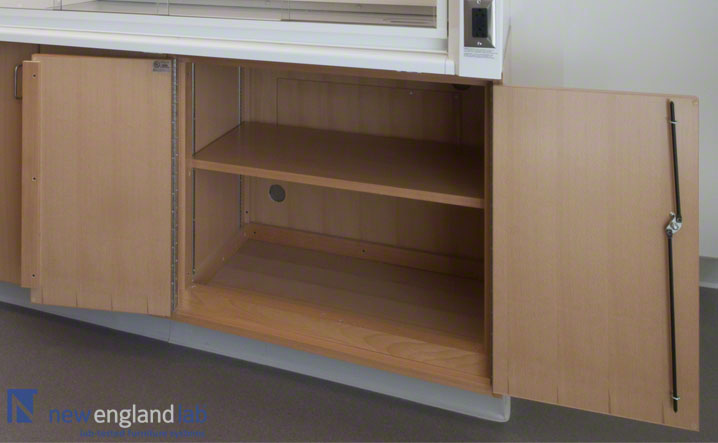

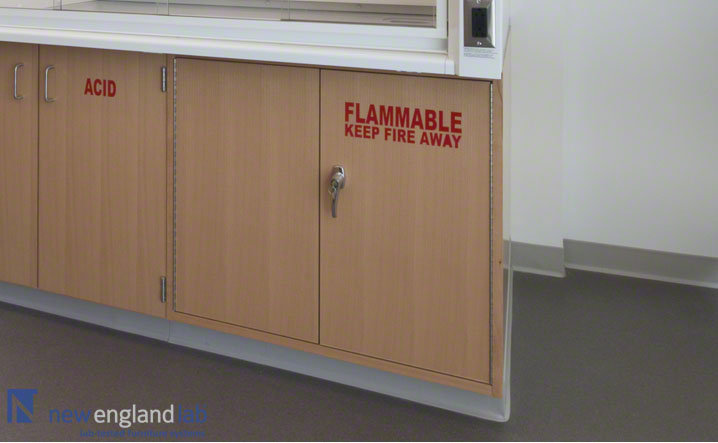

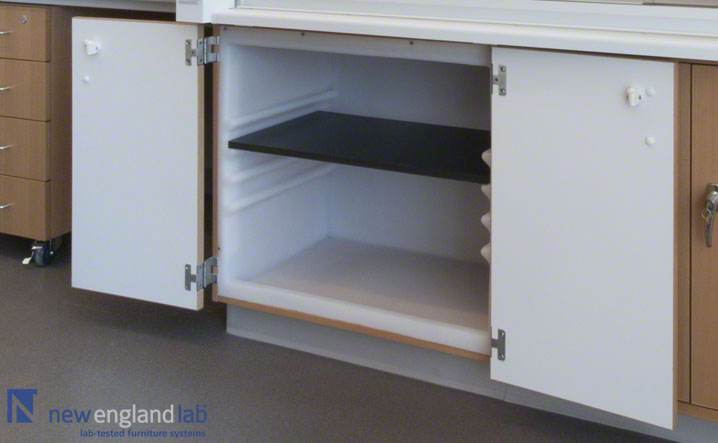

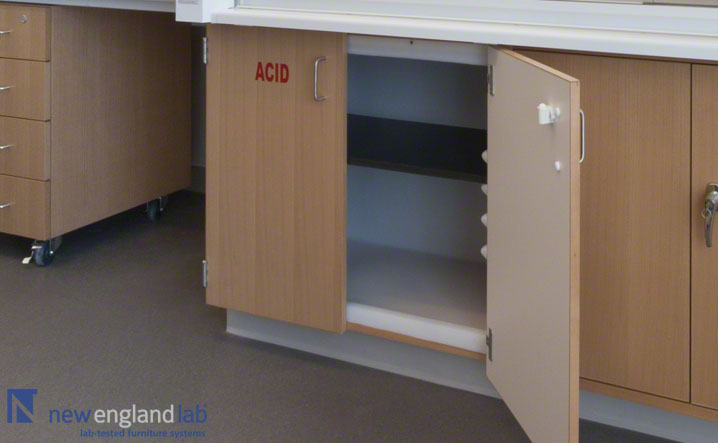

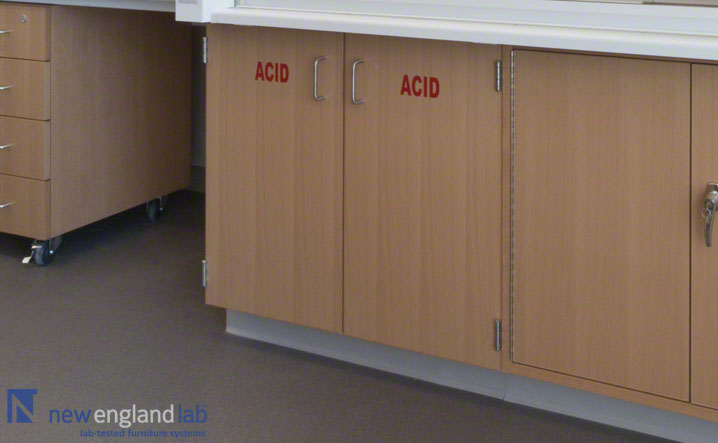

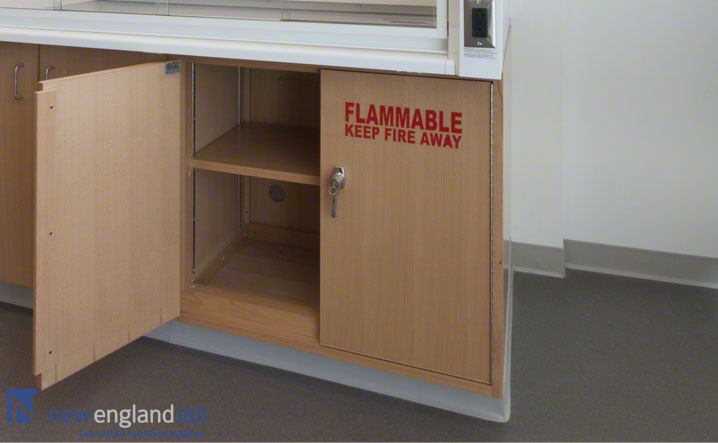

Lexington Series wood veneer cabinets such as flammable/solvent storage, acid and pump cabinets for your specialty storage needs.

wood veneer - knee spaces, aprons & legs thumbnail

wood veneer - knee spaces, aprons & legs

Lexington Series wood veneer knee space panels, aprons and leg supports provide knee openings, areas for waste containers or equipment.

wood veneer - fillers, scribes & accessories thumbnail

wood veneer - fillers, scribes & accessories

Lexington Series wood veneer fillers, scribes and accessories provide the extra details to complete your new lab furniture installation.

wood veneer - pre-configured assemblies thumbnail

wood veneer - pre-configured assemblies

Lexington Series wood veneer pre-configured assemblies for your lab.
