harvard series fume hoods

  • overview
  • details
  • options
  • resources
  • sustainability
  • families


heavy duty
ergonomic strength

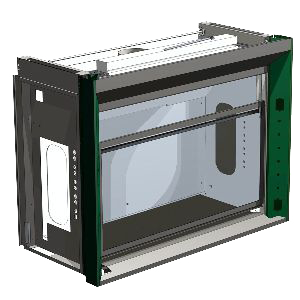

The Harvard Series fume hood is designed with double steel walls for heavy duty applications.

  • Additional steel wall provides strength for strut, shelf brackets and an apparatus grid
  • Extra high sight lines for full interior viewing
  • Durable chain and sprocket sash system
  • Recommended for VAV Only
  • Ergonomically angled front posts point services towards operator





Harvard Series Fume Hoods - New England Lab in Partnership with Mott Manufacturing

Face Velocities

  • Designed for 80-100 fpm face velocity
  • Tested to ASHRAE-110 Guidelines


Sash Counterbalance System

  • Chain and sprocket sash
  • Durable for long lifespan


Full Viewing Sash

  • Provides a clear and unobstructed side to side view of fume hood interior
  • 34” high viewing area


Lower Airfoil

  • Stainless steel lower airfoil


Chemical Resistant Liner

  • Standard fiberglass reinforced polyester liner
  • Additional liner materials available


Access Panels

  • Interior gasketed access panels
  • Removable exterior side panels for ease of access to plumbing and electrical service fixtures


Angled Service Posts

  • Ergonomic positioning of plumbing and electrical fixtures
  • Angled to face the operator


Electrical Services

  • Two UL / CSA approved duplex receptacles provided for 120 volt service
  • UL / CSA approved fluorescent or LED light fixture
  • UL 1805 Classified


Duct Collar

  • Bell shaped type 316 stainless steel collar
  • Directly interfaces with the building ventilation system


Plumbing Services

  • Front post is pre-punched to accept six plumbing fixtures per side
  • Optional factory pre-plumbing of front-loaded remote fixtures






Optional Full Galvanized Top


  • Load-bearing, rigid platform for secure connection to building ventilation system


Optional Self-Lowering Sash System

  • Sash latch temporarily secures the sash in the full open position for setup and tear down
  • When the latch is freed, the sash automatically returns to the operational position


Optional Automatic Sash Closing System

Electronic occupancy sensor system closes the sash automatically when not in use, or within a timed interval when operator moves away from the fume hood.



Product Brochures

Title Size Download MyPortfolio
NEL - Harvard Series Fume Hood Brochure 1.29 mb download [+]

Product Specifications

Title Size Download MyPortfolio
Harvard Series Fume Hood Specifications 46 kb download [+]
Painted Steel Powder Coat Appendix 1 15 kb download [+]

Product Manuals

Title Size Download MyPortfolio
Fume Hood User and Installation Product Manual 461 kb download [+]

Corporate Literature

Title Size Download MyPortfolio
Lab Fume Hood Selector Guide 745 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Fume Hood Catalog Section P 7.02 mb download [+]
Mott Fume Hood Introduction Catalog Pages P1-P3 399 kb download [+]
Mott Harvard Series Fume Hood Catalog Pages P54-P64 268 kb download [+]

Our low flow fume hoods can result in considerable energy cost reduction and ensure operator safety.  Designed to operate from 60-100 feet per minute face velocities.  They have been tested as low as 50 feet per minute.

Our low volume option can result in considerable energy savings by reducing the sash opening size.

An Automatic Sash Operating System can be incorporated that lowers and/or rises automatically which can enhance safety and dramatically increase the efficiency of Variable Air Volume (VAV) fume hood systems.

Steel

Painted steel consists of 85% or greater recycled content:

  • 42% post consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • 27% pre-consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • Systems solutions that maximize mobility and adaptability creating a user friendly, long life-cycle laboratory.
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.


Stainless steel consists of 90% recycled content:

  • 80% post consumer which can contribute to LEED credit MR4
  • 20% pre-consumer which can contribute to LEED credit MR4
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.



harvard series - bench mounted fume hood thumbnail

harvard series - bench mounted fume hood

Harvard Series bench mounted fume hoods allow work to be done at standing or sitting heights and sit conveniently on a 30" deep counter top. With a range of sash styles and liner materials, this fume hood can provide safety and protection for a wide variety of bench top applications.

harvard series - floor mounted fume hood thumbnail

harvard series - floor mounted fume hood

Harvard Series floor mounted fume hood (formerly called a walk-in) is freestanding and is available with many sash configurations. These fume hoods can allow for larger items to be wheeled in at floor level or can provide protection by containing large floor-mounted equipment.

harvard series - distillation fume hood thumbnail

harvard series - distillation fume hood

Harvard Series distillation extra tall hood can be set on a low height table to maximize vertical space. This hood is especially helpful when you need the height of a floor mounted hood but also need the convenience of a traditional hood worksurface such as a distillation set up.

harvard series - accessible fume hood thumbnail

harvard series - accessible fume hood

Harvard Series accessible fume hood is designed to meet ADA requirements for accessibility. With the proper base cabinet configuration the hood services can be within accessibility guidelines. The combination sash also allows for ease of use from a seated position.

harvard series - radio isotope fume hood thumbnail

harvard series - radio isotope fume hood

Harvard Series radioisotope fume hoods are designed to meet the stringent requirements of radioisotope applications, this hood is designed with a seamlessly welded and coved stainless steel liner with integral counter top. The countertop has been reinforced to support the weight of lead bricks.

harvard series - perchloric acid fume hood thumbnail

harvard series - perchloric acid fume hood

Harvard Series perchloric acid fume hood is designed with a seamlessly welded and coved stainless steel liner with integral counter top. The fume hood has an internal wash-down system to prevent accumulation of dangerous oxidizers.
