observation2 fume hoods

  • overview
  • details
  • resources
  • sustainability


instructional
maximized visibility

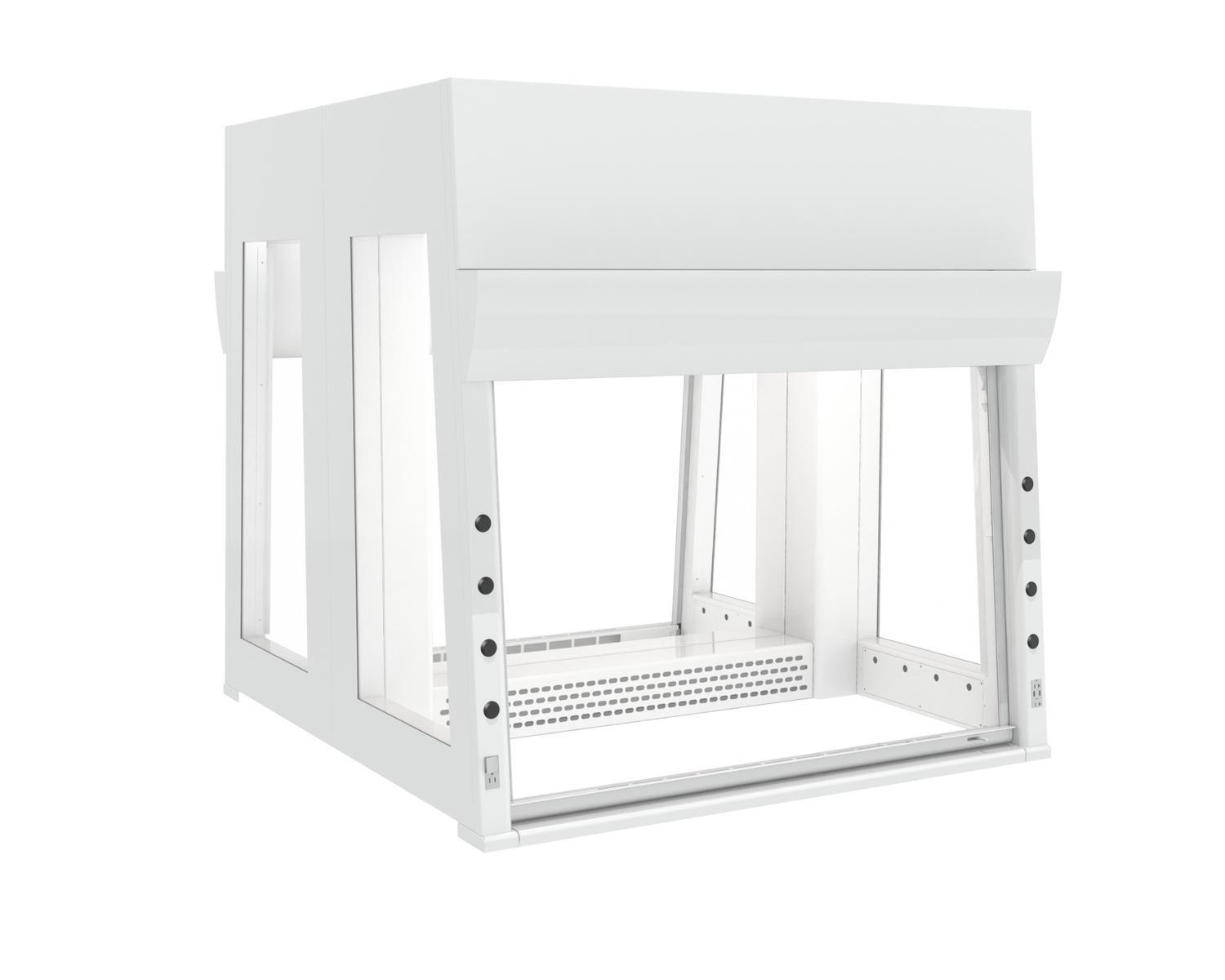

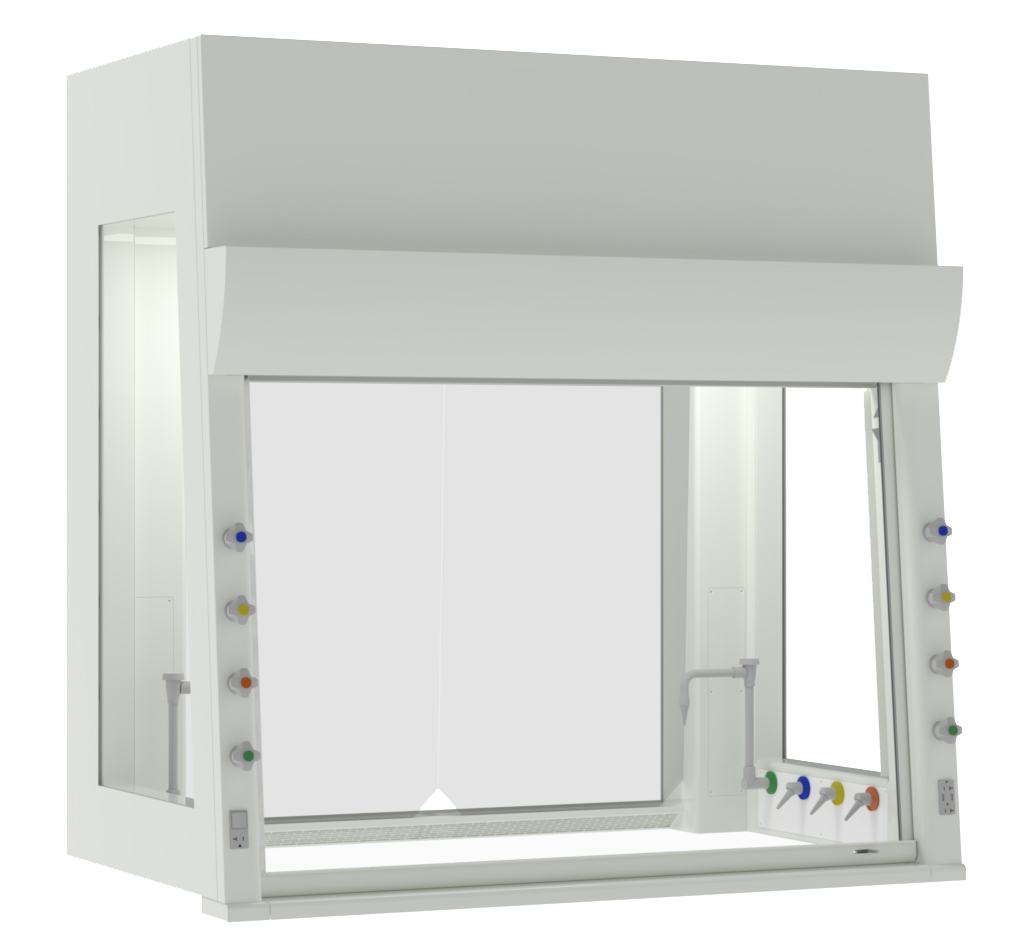

The Observation2 Series fume hood was specifically designed to meet the needs of students and teachers.

  • 5° angled sash and sloped front
  • Low profile airfoils with spill containment trough
  • Durable chain and sprocket sash system
  • Self-lowering sash that keeps the sash at 18” if raised above the set point
  • Side and back viewing windows for enhanced instruction and observation
  • Factory pre-plumbed and pre-wired narrow 3” posts
  • Single or double-sided configurations
  • Not suitable for highly corrosive environments. (For corrosive environments see our NovaGuard hood)




RFV2 Series Fume Hoods - New England Lab in Partnership with Mott Manufacturing

Face Velocities

  • Designed for 60-100 fpm face velocity
  • Tested to ASHRAE-110 Guidelines


Sash Counterbalance System

  • Chain and sprocket sash
  • Durable for long lifespan


Self-lowering sash system

  • Sash latch temporarily secures the sash in the full open position for setup and tear down
  • When the latch is freed, the sash automatically returns to the operational position


Superior Visibility

  • Narrow post design and sash glass on all sides provides maximum viewing


Low Profile Hinged Airfoil

  • Flush with the work surface
  • Spill trough is designed to provide secondary containment in the event a spill
  • Air foil is hinged for easy cleaning


Access Panels

  • Interior gasketed access panels
  • Removable exterior side panels for ease of access to plumbing and electrical service fixtures


Duct Collar

  • Rectangular type 316 stainless steel collar
  • Exhaust transitions to round sold separately


Electrical Services

  • Three UL/CSA approved receptacles and two USB charging ports are provided for 120 volt service.
  • UL/CSA approved fluorescent or LED light fixture mounted outside the fume chamber
  • This fume hood is UL 1805 Classified


Plumbing Services

  • Pre-punched posts accept a maximum of four front-loaded plumbing fixtures
  • Fixtures are pre-plumbed with crosslinked polyethylene (PEX) to the top of the fume hood
  • Natural gas to be plumbed in stainless steel


* Observation2 Series fume hood is trademarked and produced by Mott Manufacturing.



Product Specifications

Title Size Download MyPortfolio
Observation2 Series Fume Hood Specifications 566 kb download [+]

Corporate Literature

Title Size Download MyPortfolio
Lab Fume Hood Selector Guide 745 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Observation2 Fume Hood Catalog Pages P26-P33 1.07 mb download [+]

Our low flow fume hoods can result in considerable energy cost reduction and ensure operator safety.  Designed to operate from 60-100 feet per minute face velocities.  They have been tested as low as 50 feet per minute.

Our low volume option can result in considerable energy savings by reducing the sash opening size.

An Automatic Sash Operating System can be incorporated that lowers and/or rises automatically which can enhance safety and dramatically increase the efficiency of Variable Air Volume (VAV) fume hood systems.

Steel

Painted steel consists of 85% or greater recycled content:

  • 42% post consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • 27% pre-consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • Systems solutions that maximize mobility and adaptability creating a user friendly, long life-cycle laboratory.
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.


Stainless steel consists of 90% recycled content:

  • 80% post consumer which can contribute to LEED credit MR4
  • 20% pre-consumer which can contribute to LEED credit MR4
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.
