versatility
reconfigurable, adjustable

The Optima Series hood has an instantly adjustable work surface that improves ergonomics and accommodates persons with disabilities.

  • Low profile airfoil with spill containment trough
  • Durable chain and sprocket sash system
  • Self-lowering sash that keeps the sash at 18” if raised above the set point
  • Work surface positioned between 30” and 36” with a push button
  • Self-supporting
  • Optional mobile cabinets below
  • Slim side posts



RFV2 Series Fume Hoods - New England Lab in Partnership with Mott Manufacturing

Hydraulic Adjustable Height Work Surface

  • Infinitely adjustable from 30-36” height


Optimized Interior Working Area

  • Achieved through sleek side posts and a minimized frame


Self-Supporting Structure

  • The self supporting structure allows for slide-in or mobile cabinets


Face Velocities

  • Designed for 80-100 fpm face velocity
  • Tested to ASHRAE-110 Guidelines

Sash Counterbalance System

  • Chain and sprocket sash
  • Durable for long lifespan


Self-lowering sash system

  • Sash latch temporarily secures the sash in the full open position for setup and tear down
  • When the latch is freed, the sash automatically returns to the operational position


Full Viewing Sash

  • Provides a clear and unobstructed side to side view of fume hood interior
  • 34” high viewing area


Low Profile Hinged Airfoil

  • Flush with the work surface
  • Spill trough is designed to provide secondary containment in the event a spill
  • Air foil is hinged for easy cleaning


Fixed Baffle System

  • Adjusts with the work surface


Chemical Resistant Liner

  • Standard fiberglass reinforced polyester liner
  • Additional liner materials available


Access Panels

  • Interior gasketed access panels
  • Removable exterior side panels for ease of access to plumbing and electrical service fixtures


Duct Collar

  • Bell shaped Type 316 stainless steel collar
  • Directly interfaces with the building ventilation system


Electrical Services

  • Two UL / CSA approved duplex receptacles provided for 120 volt service
  • UL / CSA approved fluorescent or LED light fixture
  • UL 1805 Classified


Plumbing Services

  • Front post is pre-punched to accept up to four plumbing fixtures per side
  • Optional factory pre-plumbing of front-loaded remote or rod driven fixtures



Optional Automatic Sash Closing System

Electronic occupancy sensor system closes the sash automatically when not in use, or within a timed interval when operator moves away from the hood.

Product Brochures

Title Size Download MyPortfolio
NEL - Optima Fume Hood Brochure 121 kb download [+]

Product Specifications

Title Size Download MyPortfolio
Optima Series Fume Hood Specifications 37 kb download [+]
Painted Steel Powder Coat Appendix 1 15 kb download [+]

Product Manuals

Title Size Download MyPortfolio
Fume Hood User and Installation Product Manual 461 kb download [+]

Catalog Sections

Title Size Download MyPortfolio
Mott Fume Hood Catalog Section P 7.02 mb download [+]
Mott Fume Hood Introduction Catalog Pages P1-P3 399 kb download [+]
Mott Optima Series Fume Hood Catalog Pages P36-P39 645 kb download [+]

Our low flow fume hoods can result in considerable energy cost reduction and ensure operator safety.  Designed to operate from 60-100 feet per minute face velocities.  They have been tested as low as 50 feet per minute.

Our low volume option can result in considerable energy savings by reducing the sash opening size.

An Automatic Sash Operating System can be incorporated that lowers and/or rises automatically which can enhance safety and dramatically increase the efficiency of Variable Air Volume (VAV) fume hood systems.



Steel

Painted steel consists of 85% or greater recycled content:

  • 42% post consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • 27% pre-consumer which can contribute to LEED 2.2 credit MR4.1 & M4.2
  • Systems solutions that maximize mobility and adaptability creating a user friendly, long life-cycle laboratory.
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.


Stainless steel consists of 90% recycled content:

  • 80% post consumer which can contribute to LEED credit MR4
  • 20% pre-consumer which can contribute to LEED credit MR4
  • Durable, high-quality surface protection with minimal waste and Zero VOC's.
  • Durability that meets and exceeds SEFA 8 performance standards, to provide an even longer product life cycle.
optima series - adjustable height hood thumbnail

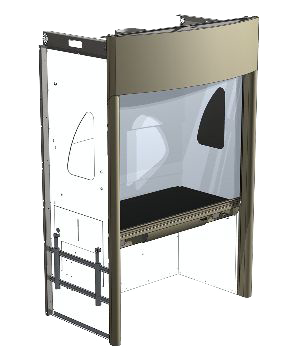

optima series - adjustable height hood

The Optima Series hood features a push button adjustable height work surface that can be positioned between 30” and 36” to adapt to changing processes. This hood can be adjusted from traditional bench height to quickly meet ADA requirements.
